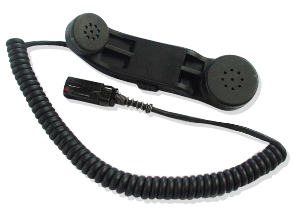

- GENERAL PURPOSE
Application : Tactical Communications,
Wireline Handset

- ELECTRICAL DATA
Mic type : Dynamic mic (noise cancelling)
Mic impedance : 150Ω at 1kHz, nominally
Mic sensitivity : -56dB re 1v/Pa, 1kHz
Speaker impedance : 1kΩ at 1kHz,
nominally
Speaker sensitivity : 104dB re 1MW/20μPa,
1kHz
Speaker distortion : < 5% at 1kHz

- ENVIRONMENTAL DATA
Usage temperature : -30˚C to +55˚C
Storage temperature : -40˚C to +70˚C
Humidity range : up to 95% RH

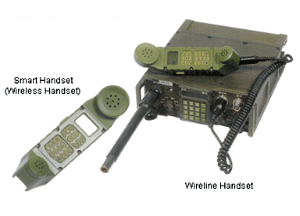

- GENERAL PURPOSE
Application : Tactical Communications,
Wireline Handset
Wireline
1) Working Mode Choice
2) Shift Channel
3) Frequency set up
4) Mixing
5) Output modification
6) GPS Function
7) Data communication
Wireless
1) Wireless operate within 25m
2) Function : Same as wireline handset

- ELECTRICAL DATA
Mic type : Dynamic mic (noise cancelling)
Mic impedance : 150Ω at 1kHz, nominally
Mic sensitivity : -56dB re 1v/Pa, 1kHz
Speaker impedance : 1kΩ at 1kHz,
nominally
Speaker sensitivity : 104dB re 1MW/20μ Pa,
1kHz
Speaker distortion : < 5% at 1kHz

- ENVIRONMENTAL DATA
Usage temperature : -30˚C to +55˚C
Storage temperature : -40˚C to +70˚C
Humidity range : up to 95% RH
