NSN : 5965-00-179-7762
- FUNCTIONAL DESCRIPTION

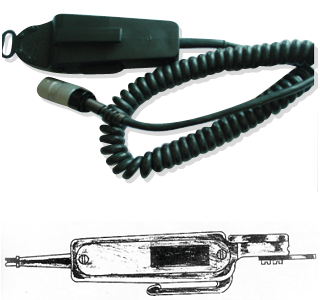

The dynamic Microphone M-80/U is provided with a push-to-talk,
release-to-listen (key) switch. Palm held, dynamic, and noise canceling
microphone that is equipped with a four conductor retractile cord terminated
with a connector U-1902/U and a clip for attaching the microphone to the
user's clothing or a radio set.

- CONSISTS OF
Microphone, Dynamic M-80/U Including :
- Handle
- Five-conductor retractible cord
- Retractile cord with integral connector

- DIMENSIONS
- Length : 2 Inches (50.8 mm)
- Width : 1.4 Inches (35.56 mm)
- Height : 6.1 Inches (152.65 mm)

- CABLE DATA
- Length (Retracted) : 11.5 Inches (292.10 mm)
- Length (Extended) : 6 feet (1,828.8 mm)
- No. of Conductors : 5
- No. of Connectors : 1
- Connector Plug : U-182/U

- TECHNICAL DESCRIPTION
- Normal Impedance : 150Ω (1kHz)
- Frequency : 300 ~ 3,500 Hz
- Sensitivity : -56dB (1kHz)

- ENVIRONMENTAL DATA
- Moisture Resistance : Water tight (3 feet water for 2 hrs)
- Operating Temperature : MIL-STD-169
- Nonoperating Temperature : MIL-STD-169
- Relative Humidity (Nonoperating) : 97 to 100 percent
- Elevation (Operating) : Up to 15,000 feet above sea level
- Elevation (Nonoperating) : Up to 50,000 feet above sea level
- Salt spray : 20 percent salt solution at 96˚F for 48 hrs
- Vibration : Method 201 of MIL-STD-202
- Blast : SK-N-864
