GENERAL |
| |
Part NO. : 13750 |
| |
NSN NO. : 5965-99-911-8230 |
| |

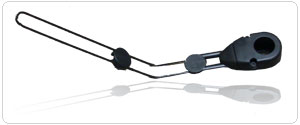

Transducer Type : TROPICALIZED
NOISE CANCELLING MICROPHONE |
| |
| -
SPECIFICATION |
| |
Sensitivity |
| |
: |
-65dB re 1V/Pa at 1kHz
with sound source 9.5mm distant from front of
microphone.
The peak output is approx.
3mV for loud speech close to the microphone. |
|
| |
Impedance |
|
|
| |
: |
300ohm ± 20% at 1kHz. |
| |
Noise cancellation |
| |
: |
Approx. 35dB at 100Hz gradually
reducing to 0dB at 1.2kHZ. |
| |
|
|
|
|
| |
|
|
|
|
