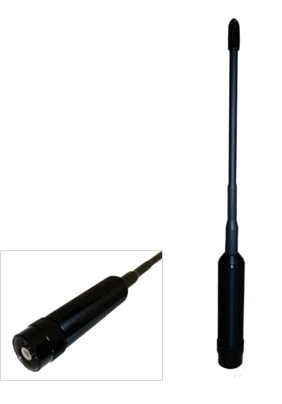

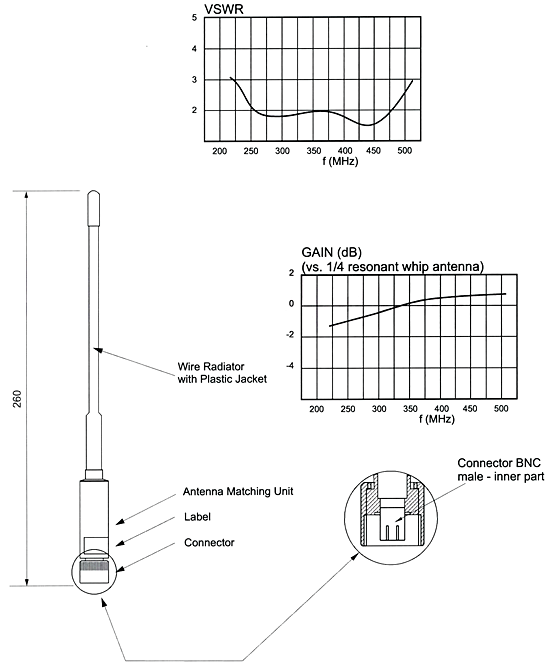

The antenna AD-44/BW-6600T is a wideband monopole whip, primarily intended for use with portable and handheld radio stations in UHF frequency range from 225 to 512MHz. Electrically the antenna is optimised for all exploitation conditions (radio in hand, at the side, at the breast etc.) so it is not necessary to additionally tune the antenna. The antenna is composed of radiating part made of special flexible wounded wire and covered with a heatshrinkable tube with silicone layer ensuring high flexibility and roughness. The antenna has built-in a special microstrip transformer matching network enclosed in fiberglass housing above the input coaxial connector.
Frequency range (MHz) 225 - 512
Impedance (ohm) 50
VSWR typ. < 2.5
Polarization VER.
Maximum power (W) 15W CW
Colour black
Height (mm) 260
Mass (g) 90
Connector custom BNC
Temp. range (℃) -40...+70
