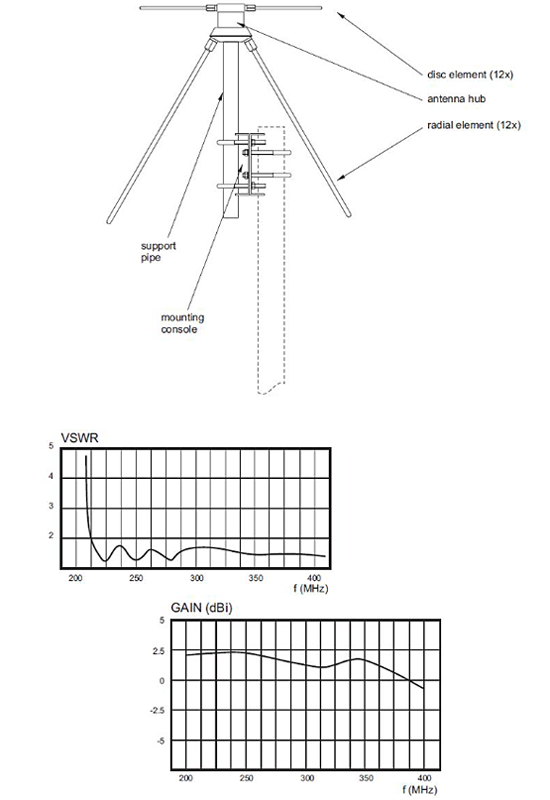

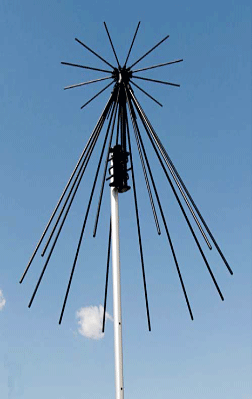

The antenna AD-17/C-197GR is a wideband UHF "disc-cone" antenna, intended for base station. The antenna disc and radial elements are made of high grade aluminum alloy rods, protected with the irridite coating and painted with black two-component PU UV-resistant paint, ensuring low weight and excellent resistance against atmospheric infuences. In spite of a low weight the antenna is very robust due to the special construction of the element joint nuts. The antenna is composed of the support hub, 12 disc elements and 12 radial (cone) elements. The antenna exhibits constant gain and stable radiation pattern over the complete frequency range 225-400 MHZ.

The antenna is equipped with mounting console which allows installation on the appropriate masts with the outer diameter between 25 to 60 mm. Other mounting options are available with use of family of out consoles, clamps and arms ADK.

Frequency range 225 - 400MHz
Impedance 50ohm
VSWR < 1.6
Gain typ. 2 dBi
Polarization Vertical
Maximum power 1000W CW
Connector HN female
Width 45cm
Height 50cm
Weight 3.5kg
Colour Black non glossy
Temp. range -55...+75℃
Wind velocity 160km/h
