▶ Home > Product > Cable |
|
| |
|
|
|
|
|
| |
| PRODUCT |

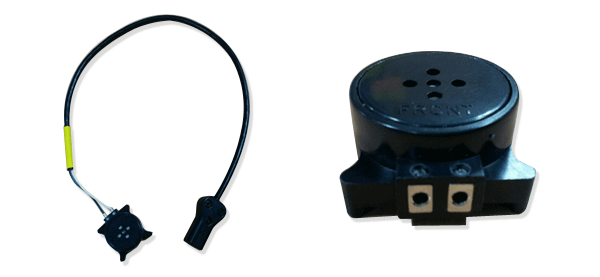

M-116G
MICROPHONE ELEMENT WITH CABLE ASSEMBLY |
| NSN |
5965-00-988-8770 |
| MIL
SPEC |
MIL-PRF-26542/8 |
| COLOR |
BLACK |
| IMPEDENCE |
150 OHMS |
| TYPE |
DYNAMIC |
| NOTE |
THE M-116/G INCLUDES A
GAS BLOCK CABLE ASSEMBLY
PER FIGURE #1 OF MIL-PRF-26542/8 |
| MICROPHONE |
THE 150 OHM VERSION OF
THE M-116G MICROPHONE |
| FREQUENCY |
300 ~ 7,000Hz |
| SENSITIVITY |
-56dB (1KHz) |
| DISTORTION |
LESS THAN 5% |
| ALTITUDE
COMPENSATION |
50,000ft |
|
|
|
 |
|
